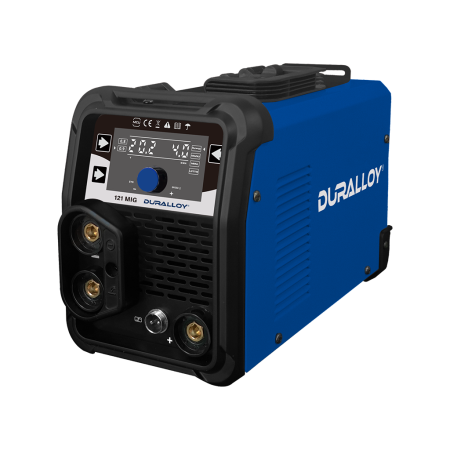

121 Gasless MIG
10 Amp Gasless MIG/TIG/Stick Inverter Welding Machine
PART NO : DA121MIG
PORTABLE & DURABLE
MULTIPURPOSE
Gasless MIG, DC TIG & MMA modes.
DIGITAL DISPLAY
Variable amperage control with digital meters for a simultaneous welding current and voltage display.
PROTECTIONS
Equipped with temperature, voltage and current sensors for greater protection.
FEATURES
- Gasless MIG operation
- DC Lift TIG with optional TIG torch
- Hot Start & Arc Force for MMA mode
- Easy to set up and operate
- Suits 1kg spools
- Voltage Reduction Device (VRD)
- 2 roll wire feeder
- Industrial cable connectors (10-25)
- IP21S rating
- Weight 4kg
APPLICATIONS
- Maintenance
- Light fabrication
- Rural applications
- On-site fabrication
- DIY & home workshops
MATERIALS
- Mild Steel
PACKAGE INCLUDES
- Power Source
- 2.1M MB14 Style MIG Torch
- 3m Earth Lead
- 3m MMA Arc Lead
- Duralloy 0.9mm 1kg MIG wire
- 0.8-0.9 FC Roller for Gasless Wires
- Owner Manual
| SPECIFICATIONS | |||
|---|---|---|---|
| Power Supply | 240V | ||
| Supply Plug | 10 Amp | ||
| Frequency | 50/60Hz 240V ± 10% | ||
| Gasless MIG | MMA | Lift TIG | |
| Input Current | 22A/8.52A | 24A/9.3A | 15.9A/6.2A |
| Duty Cycle 40oC 10min | 120A 15% 60A 60% 46.5A 100% | 120A 15% 60A 60% 46.5A 100% | 120A 15% 60A 60% 46.5A 100% |
| No Load Voltage | 60V | 60V | 25V |
| Efficiency | 82% | 81.5% | 78.4% |
| Power Factor | 0.64 | 0.61 | 0.63 |
| Wire Diameter | Gasless 0.8, 0.9mm | ||
| Net Weight | 4kg | ||
| Dimensions | 380mm x 240mm x 245mm | ||
| Protection Class | IP21S | ||
| Insulation Class | H | ||
| Cooling | Auto Fan |
